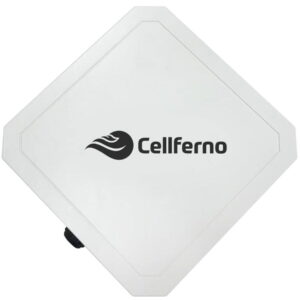

CELLFERNO M2000 5G CAT-22 OUTDOOR MODEM, 2.5 GBPS

Cellferno M2000 5G Cat-22 Outdoor Modem, powered by Inseego FW2000e, represents one of the biggest leaps in wireless technologies seen so far this decade. The M2000 5G Fixed Wireless unit provides multi-gigabit data speeds by combining both 4G and 5G carriers (EN-DC). Supporting the latest 5G NR standard along with an incredible Cat-22 4G LTE chipset this unit provides peak data rates of up to 2.5 Gb/s.

This unit totally simplifies the provision of high performance internet connectivity in regional and low signal areas. Simply connected by a single ethernet cable and powered by the included 802.3bt PoE injector, installation can be completed in a matter of minutes.

The unit is equipped with a dual mode 4G LTE-A Pro and 5G NR Snapdragon X55 chipset supporting 4T4R multi-antenna technology. Its integrated 4×4 MIMO antenna system provides high gain (up to 14 dBi) on all sub-6 GHz bands.

The Inseego Connect platform not only assists customers and installers with correctly setting up the device during installation via an app, but also enables remote configuration, alerts, and troubleshooting of the device using a subscription-based cloud platform.

As a dual-sim redundant, IP67 weatherproof device that supports temperature extremes, this unit is ideal for enterprise and industrial customers demanding high data rates with high reliability.

FEATURES:

• Chipset & Network: Qualcomm SDX55 Chipset, 5G Sub-6 bands, 4G Cat-22 LTE
• Connectivity: High Gain Directional Antennas provide best in class coverage and extend the carrier network reach.
• Security: Enterprise-grade security, 3rd party penetration testing.
• Device Management: Inseego Connect smartphone app for professional installation and cloud-based device management.
• Ports: 5 Gbps Ethernet LAN port, power over ethernet (PoE).
• Durability: Environmental rating of IP67 for water and dust. Operating temperature range of -30°C to 70°C.

Designed to go on the roof of a building, this Fixed Wireless Modem is powered by a single ethernet cable for simple and easy installation. Once inside the unit can be connected directly to a computer, network switch or WiFi access point to provide high-speed internet to devices within range.

SPECIFICATIONS:

• Connectivity
  • 5G Sub-6
  • 4G LTE Cat-22
  • 4×4 MIMO Sub-6
  • 256 QAM Sub-6
  • 2.5 Gbps DL / 316 Mbps UL
• Band Support
  • 5G NR: 700/850/900/1800/2100/2300/2600/3500 MHz
  • 4G LTE: 700/850/900/1800/2100/2300/2600 MHz
  • RCM approved with above bands
• Chipset: Qualcomm Snapdragon SDX55
• Ports: 1 x 5Gbps Ethernet LAN Port
• LED Indicators: 1 x Power, 1 x Status LED
• Power: Power over Ethernet (PoE)
• High Gain Antennas:
  • 14 dBi: 3.3GHz – 4.2GHz
  • 12 dBi: 1.7GHz – 2.7GHz
  • 5 dBi: 1.5GHz
  • 0-4 dBi: 600MHz – 1.0GHz
• Mounting Options: Pole Mount
• Dimensions & Weight:
  • 430 x 400 x 71.7 mm
  • 4.22 kg
• Operating Temperature: -30 to +70°C
• Environmental:
  • IP67 rating for water and dust ingress protection
  • Internal heating element for startup and operation in cold environments
• SIM: 2 x Nano 4FF SIM Slots
• Operating Systems Supported:
  • Windows 10 or later
  • MacOS 10.14 and later
  • Linux Ubuntu 18.04 LTS and later
• Security:
  • 3rd Party Penetration Testing Verified
  • Security Hardened Web Interface
  • Password Hash
  • Anti-CSRF
  • Session Timeout
  • Incorrect Password Lockout
  • MACSec Support
• Standards / Approvals / Certifications: FCC, CE, PTCRB, GCF, RCM, R-NZ
• Environment Standards: RoHS, WEEE, REACH
