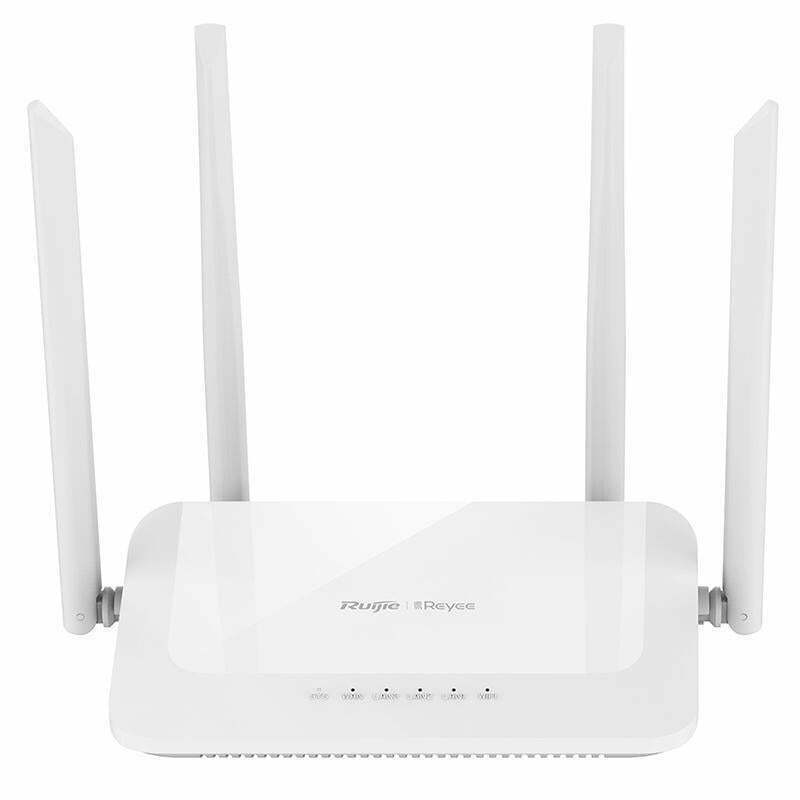

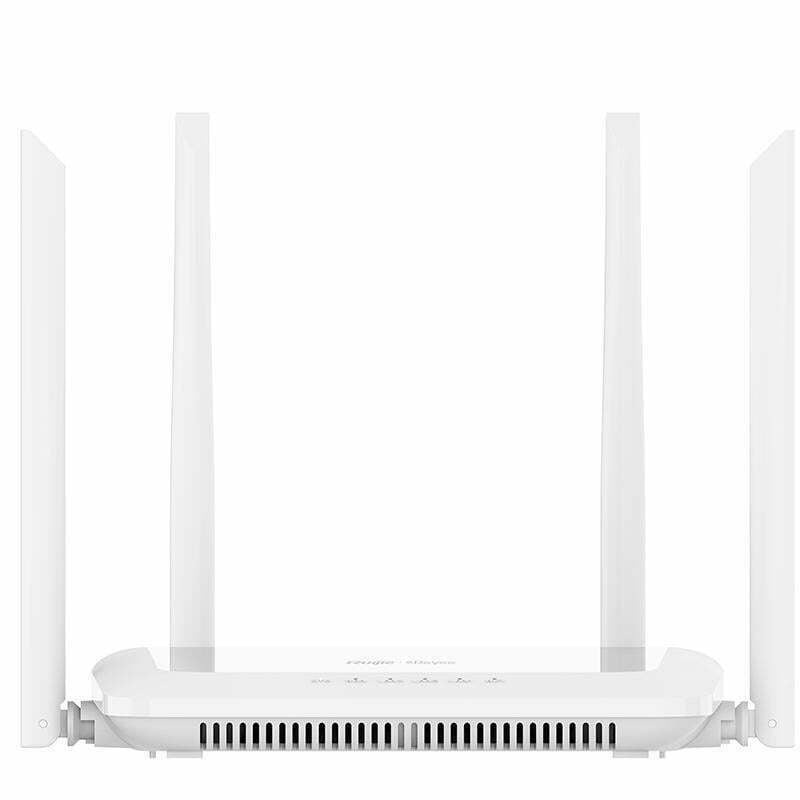

The Reyee RG-EW1200 is a high performance dual-band WiFi router, suitable for the home and small office environments. As an 802.11ac Wave-2 mesh access point, multiple EW1200 units can be placed around the house or office to provide seamless connectivity.
Offering 300 Mb/s over 2.4 GHz and 867 Mb/s over 5 GHz, the Ruijie RG-EW1200 packs a gigabit of WiFi capacity in one compact and affordable unit. 4T4R MU-MIMO allows high speed transmission to multiple devices simultaneously, allowing bandwidth to be shared without competiton.
The unit incorporates Reyee Mesh technology, which allows WiFi access points such as the RG-EW1200 to be set up in mesh mode with a single click. All access points connected by Reyee Mesh intelligently transition users between access points for seamless roaming. Each WiFi AP self-identifies whether it is wired or wirelessly backhauled and coordinates with other Reyee Mesh devices. Bandsteering technology will automatically switch users from 2.4 to 5 GHz based on distance and data performance, making sure no matter your location in the building connectivity is as fast as possible.
Any Reyee Mesh device can form part of the network, allowing the RG-EW1200 to be deployed alongside any other Reyee WiFi Mesh Router.
Available in a pack of 1, 2 or 3 mesh access points. Please select below.
Features
- 802.11ac Wave-2 supporting speeds up to 1167 Mbps
- Reyee Mesh Technology for seamless roaming between APs
- 4×4 MU-MIMO with four high performance omni antennas
- 1x WAN 3x LAN (RJ45 10/100Base-T)
- Up to 32 users per AP recommended
Since 2020 Ruijie has claimed a podium position on the Gartner Magic Quadrant, making into the top 10 WiFi brands globally. With a strong lead ahead of competitors such as D-Link, Cambium, Ubiquiti, and hundreds more, Ruijie introduced its Reyee product line as a high performance WiFi range with a remarkably affordable price point.
Wireless specifications | 2.4GHz 2*2: maximum rate 400Mbps 5GHz 2*2: maximum rate 867Mbps |
Antenna: External 6dBi non-removable omnidirectional antennas | |
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO | |
Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual-frequency integration | |
Support beamforming | |
Wi-Fi channel: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 5GHz Channel: 36,40,44,48,149,153,157,161,165 | |

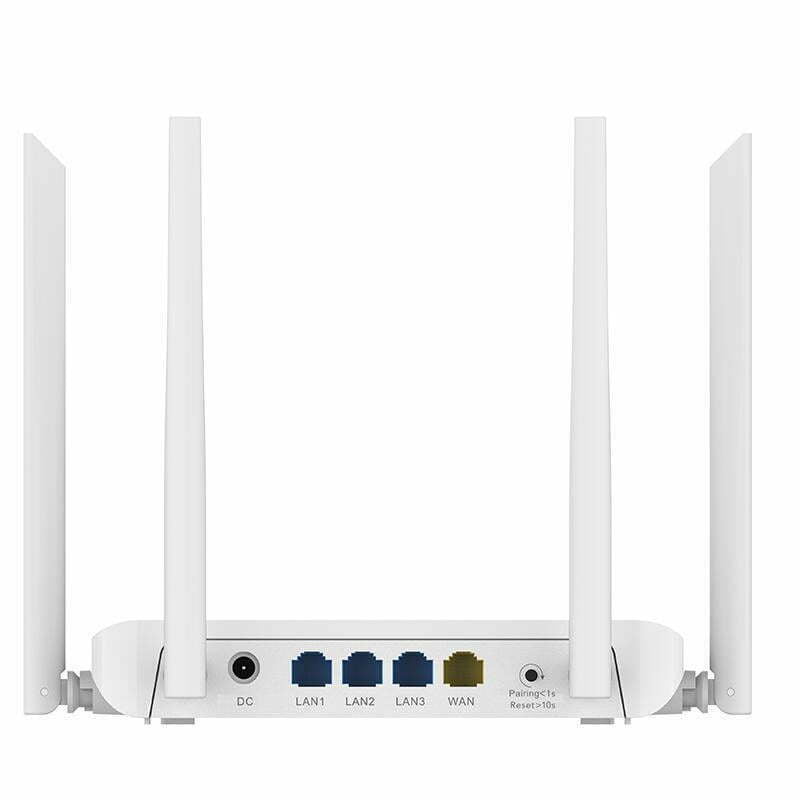

Ports | 1 10/100/1000M WAN port (Auto MDI/MDIX) |
3 10/100/1000M LAN ports (Auto MDI/MDIX) | |
1 blue system LED indicator – 4 network port LED indicators | |
1 device pairing/factory reset button | |
1 power input interface | |
Physical specifications | Dimensions: 220x140x36mm (WxDxH, no antenna) |
Weight: 0.98kg | |
Power supply | Power specification: DC12V 1.5A |
Maximum power: <14W | |
Certification | CCC, SRRC |
Operating environment | Operating temperature: 0-45℃ |
Storage temperature: -40-70℃ | |
Operating humidity: 5%-95%RH (non-condensing) | |
Storage humidity: 5%-95%RH (non-condensing) | |
Main features | Routing mode: PPPoE / DHCP / static IP; relay mode: wired relay / wireless relay |
Obtain PPPoE account from the old router | |
Wi-Fi dual-band separation/ integration | |
Guest Wi-Fi; smart home Wi-Fi; wireless network isolation | |
Static DHCP address | |
Virtual server: port mapping, DMZ, etc. | |
DDNS: Oray | |
UPnP | |
Network security | Wireless security: WPA-PSK/WPA2-PSK encryption |
ARP protection: IP/MAC binding | |
SSID hiding | |
Preventing rogue devices (Blacklist/whitelist) | |
Internet access control | |
Advanced features | Reyee Mesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices |
Wi-Fi optimization: Wi-Fi roaming, 5G priority, acceleration mode, channel adjustment, power adjustment, roaming sensitivity adjustment | |
Bandwidth management: hardware NAT, intelligent bandwidth allocation | |
Auto network inspection, fault diagnosis | |
Software upgrade: Automatic & manual cloud software upgrade | |
Management mode | Local web page |
Cloud management: MACC cloud platform | |
Ruijie Cloud app: iOS version, Android version |
